Gate valve DN-400 is a type of shutoff valves for overlapping pipelines with diameter of 400 mm. Produce in steel stamped welded cases for pressure PN-1, PN-2,5, PN-4, PN-6, PN-10, PN-16, PN-25. Manufacture wedge gate valve with flange connection or welded. Connection sizes of flanges according to GOST, DIN or to your specifications. Drive - manual or electric.
Technical characteristics of gate valves DN-400
The table contains technical characteristics of gate valves DN-400: type, weight, material of seal and body, type of working medium, temperature limit, nominal pressure.
|
Gate valve DN-400 |
Nominal pressure, bar |
Applications | Type | Material | |
| Body |
Corrosion-resistant surfacing |
||||
| 30s46nzh DN-400 | 6,3 | Water, steam, petroleum products, gas, oil, | Wedge | St20, 09G2S, 08X18H10T, 10X17H13M2T | stainless cladding TsN-6L, TsN-12M |
| 30s946nzh DN-400 | |||||
|
30s542nzh DN-400 |
10 |
||||
|
30s942nzh DN-400 |
|||||
| 30s530nzh DN-400 | |||||
| 30s930nzh DN-400 | |||||
|
30s41nzh DN-400 |
16 |
||||
|
30s941nzh DN-400 |
|||||
|
30s50nzh DN-400 |
|||||
|
30s950nzh DN-400 |
|||||
| 30s564nzh DN-400 |
25 |
||||
|
30s964nzh DN-400 |
|||||
|
30s507nzh DN-400 |
|||||
|
30s907nzh DN-400 |
|||||
|
30s527nzh DN-400 |
|||||
|
30с927nzh DN-400 |
|||||
Drawing and overall dimensions of DN-400 gate valves
The table shows the main dimensions of steel gate valves DN-400: constructional length and height, nominal diameter of the passage, flange diameter.
|
Gate valve DN-400 |
Dimensions, mm |
n |
Weight, kg | |||||||
|
L |
В |
Н |
Н1 |
h |
D1 |
d |
flange | welding | ||
| 30s46nzh DN400 PN6,3 | 310 | 600 | 1542 | 1275 | 268 | 495 | 22 | 16 | 300 | - |
| 30s946nzh DN400 PN6,3 | ||||||||||
|
30s542nzh DN400 PN10 |
406 | 565 | 1543 | 1260 | 283 | 515 | 26 | 16 | 334 | - |
| 30s942nzh DN400 PN10 | ||||||||||
|
30s530nzh DN400 PN10 |
406 | 565 | 1267 | 984 | 283 | 515 | 26 | 16 | 342 | - |
|
30s930nzh DN400 PN10 |
||||||||||
| 30s41nzh DN400 PN16 | 600 | 710 | 1695 | 1405 | 290 | 525 | 30 | 16 | 481 | 419 |
| 30s941nzh DN400 PN16 | ||||||||||
| 30s50nzh DN400 PN16 | ||||||||||
| 30s950nzh DN400 PN16 | ||||||||||
| 30s527nzh DN400 PN25 | 600 | 740 | 1310 | 1005 | 305 | 550 | 33 | 16 | 640 | 548 |
| 30с927nzh DN400 PN25 | ||||||||||
| 30s564nzh DN400 PN25 | 600 | 752 | 1706 | 1401 | 313 | 550 | 33 | 16 | 523 | 447 |
| 30s964nzh DN400 PN25 | ||||||||||
| 30s507nzh DN400 PN25 | ||||||||||
| 30s907nzh DN400 PN25 | ||||||||||

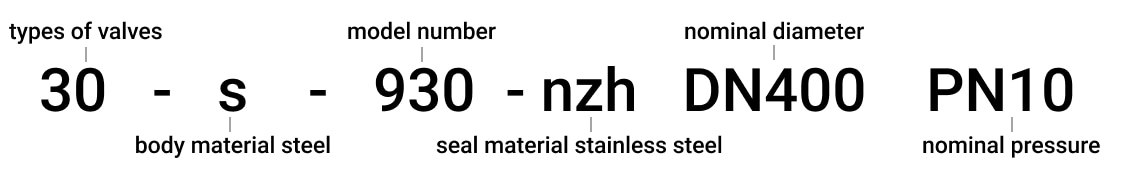

Marking of gate valve DN 400
Mark is indicated on the body of gate valve DN-400 as an index of Central Design Bureau of Armature Construction (CDBA) system. The designation is made by casting or branding.
The marking of gate valve DN-400 contains the following parameters and characteristics:
- Type of valve;
- The nominal diameter of the passage;
- Working pressure;
- Body material;
- Material of sealing rings.
Buy gate valve DN-400 made in Ukraine
Buy gate valve DN-400 for pressure PN-1, PN-2,5, PN-4, PN-6, PN-10, PN-16, PN-25 with manual or electric control. Will pick gate valve DN400 for water, steam, gas, oil pipelines. All equipment is tested. Enclosed delivery: gate valve DN-400, the passport with instruction manual.
The price of gate valve DN-400 depends on the model, pressure PN and materials of parts. For optimum discounts 5-15% of the price list. To calculate the cost of steel gate valve DN-400 - please contact the manager or send a request by mail.
