Gate valve DN-500 is a type of shutoff valves for overlapping pipelines with diameter of 500 mm. Produce in steel stamped welded cases for pressure PN-1, PN-2,5, PN-4, PN-6, PN-10, PN-16, PN-25. Manufacture wedge gate valve with flange connection or welded. Connection sizes of flanges according to GOST, DIN or to your specifications. Drive - manual or electric.
Technical characteristics of gate valves DN-500
The table contains technical characteristics of gate valves DN-500: type, weight, material of seal and body, type of working medium, temperature limit, nominal pressure.
|
Gate valve DN-500 |
Nominal pressure, bar |
Applications | Type | Material | |
| Body |
Corrosion-resistant surfacing |
||||
| 30s46nzh DN-500 | 6,3 | Water, steam, petroleum products, gas, oil, | Wedge | St20, 09G2S, 08X18H10T, 10X17H13M2T | stainless cladding TsN-6L, TsN-12M |
| 30s946nzh DN-500 | |||||
|
30s542nzh DN-500 |
10 |
||||
|
30s942nzh DN-500 |
|||||
| 30s530nzh DN-500 | |||||
| 30s930nzh DN-500 | |||||
|
30s541nzh DN-500 |
16 |
||||
|
30s941nzh DN-500 |
|||||
|
30s550nzh DN-500 |
|||||
|
30s950nzh DN-500 |
|||||
| 30s564nzh DN-500 |
25 |
||||
|
30s964nzh DN-500 |
|||||
|
30s507nzh DN-500 |
|||||
|
30s907nzh DN-500 |
|||||
|
30s527nzh DN-500 |
|||||
|
30с927nzh DN-500 |
|||||
Drawing and overall dimensions of DN-500 gate valves
The table shows the main dimensions of steel gate valves DN-500: constructional length and height, nominal diameter of the passage, flange diameter.
|
Gate valve DN-500 |
Dimensions, mm |
n |
Weight, kg | |||||||
|
L |
В |
Н |
Н1 |
h |
D1 |
d |
flange | welding | ||
| 30s46nzh DN500 PN6,3 | 350 | 684 | 1880 | 1560 | 320 | 600 | 22 | 16 | 390 | - |
| 30s946nzh DN500 PN6,3 | ||||||||||
|
30s542nzh DN500 PN10 |
457 | 710 | 1890 | 1555 | 335 | 620 | 26 | 20 | 493 | - |
| 30s942nzh DN500 PN10 | ||||||||||
|
30s530nzh DN500 PN10 |
457 | 710 | 1500 | 1170 | 335 | 620 | 26 | 20 | 523 | - |
|
30s930nzh DN500 PN10 |
||||||||||
| 30s541nzh DN500 PN16 | 700 | 840 | 2010 | 1655 | 355 | 650 | 33 | 20 | 880 | 750 |
| 30s941nzh DN500 PN16 | ||||||||||
| 30s550nzh DN500 PN16 | ||||||||||
| 30s950nzh DN500 PN16 | ||||||||||
| 30s527nzh DN500 PN25 | 700 | 860 | 1550 | 1185 | 365 | 660 | 39 | 20 | 1260 | 1068 |
| 30с927nzh DN500 PN25 | ||||||||||
| 30s564nzh DN500 PN25 | 700 | 860 | 2050 | 1685 | 365 | 660 | 39 | 20 | 1010 | 870 |
| 30s964nzh DN500 PN25 | ||||||||||
| 30s507nzh DN500 PN25 | ||||||||||
| 30s907nzh DN500 PN25 | ||||||||||

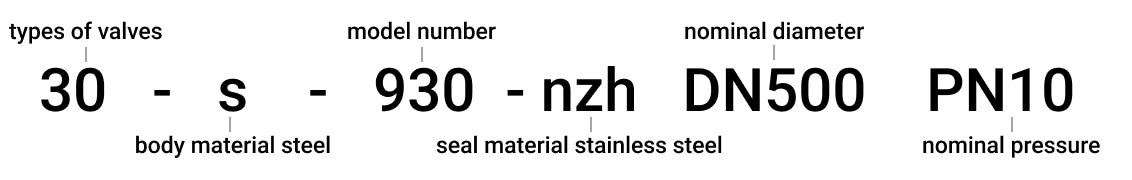

Marking of gate valve DN 500
Mark is indicated on the body of gate valve DN-500 as an index of Central Design Bureau of Armature Construction (CDBA) system. The designation is made by casting or branding.
The marking of gate valve DN-500 contains the following parameters and characteristics:
- Type of valve;
- The nominal diameter of the passage;
- Working pressure;
- Body material;
- Material of sealing rings.
Buy gate valve DN-500 made in Ukraine
Buy gate valve DN-500 for pressure PN-1, PN-2,5, PN-4, PN-6, PN-10, PN-16, PN-25 with manual or electric control. Will pick gate valve DN500 for water, steam, gas, oil pipelines. All equipment is tested. Enclosed delivery: gate valve DN-500, the passport with instruction manual.
The price of gate valve DN-500 depends on the model, pressure PN and materials of parts. For optimum discounts 5-15% of the price list. To calculate the cost of steel gate valve DN-500 - please contact the manager or send a request by mail.
